- New
Lionshee Solar Balcony Systems

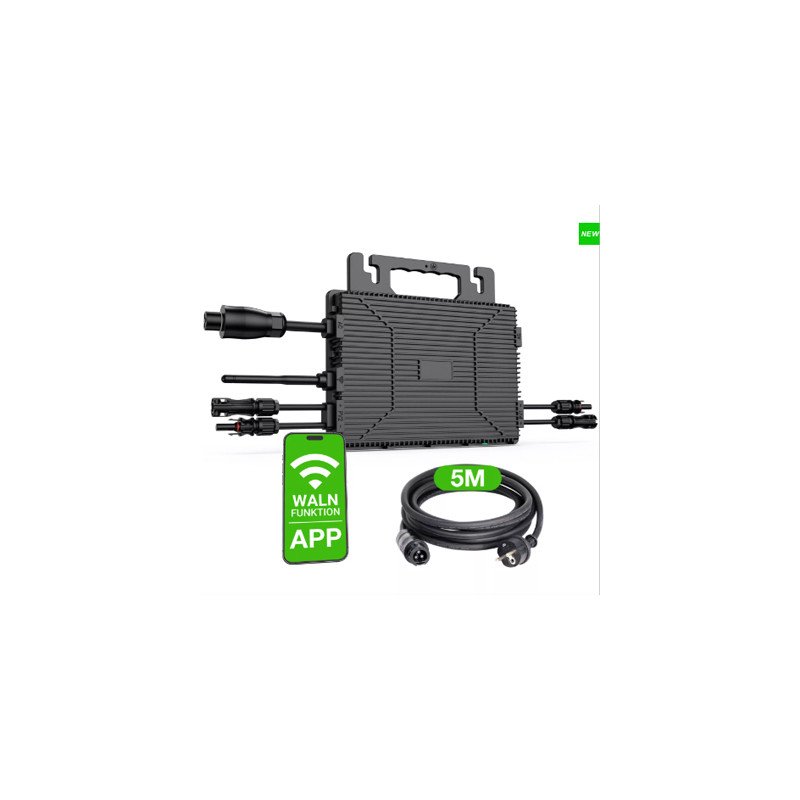

Lionshee Balcony Solar Systems - 800W. The Solar Balcony Kit is a mini PV power generation system which is easy to install. It is a plug and play device which comprises 2X flexible or foldable solar panels, support bracket system, 800W microinverter with App WIFI function, and 5m European standard pluggable AC busbar with plug. The portable and foldable design makes it perfect for a variety of home applications. The balcony solar system can be installed on a balcony, a wall or a garden
FEATURES
Easy installation & plug and play
MPPT trackers, 800W Output, Universal MC4 Adaptation
Smart Life Application Control
IP67 Waterproof
DESCRIPTION
800W Microinverter
Input Data(DC)
Recommended solar panel input power: 275-530W*2
Number of DC input connections: MC4*2
Max. Input voltage: 60V
PV operating voltage: 25-55V
Start-up voltage: 20V
MPPT tracking range: 18-55V
MPPT tracking accuracy: >99.5%
Max. Continuous input current: 13.5A*2
Output Data(AC)
Max. Continuous output power: 800W
Nominal output voltage: 230V
Output voltage range: 280W-550W
Max. Continuous output current: 3.47A
Nominal output frequency: 50Hz
Output frequency range: 45 - 55Hz
Maximum number of branch circuit connections: 230VAC: 5 sets
Peak efficiency: 96%
Protection Function
Type of enclosure: IP67
Protective class: Class 1
Operating ambient temp.: -40°C to +65°C
Indication light quantity: Working status: Led light+WiFi Signal Led light
Communication connection mode: WI-Fi/2.4G
Cooling method: Natural cooling(no fan)
Working environment: Indoor and Outdoor
Weight：2.8KG, Size (L*W*H): 260mm*225mm*32mm
