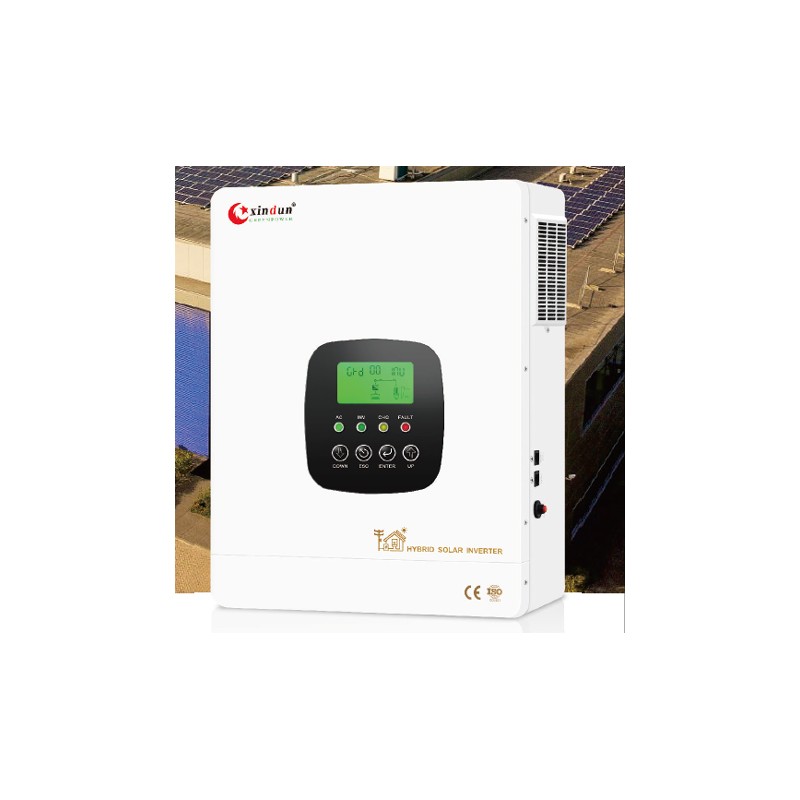

Xindun HFP Hybrid Solar Inverters

FEATURES

Capable of setting 3 working modes (on grid mode, off grid mode, hybrid mode).

With on-grid current setting function

With a charging priority setting function

With lithium battery BMS communication function

Hybrid inverter with MPPT charge controller built-in

With WIFI GPRS monitoring optional

Inverter can work without batteries

Ultra wide MPPT range, with a minimum of 40VDC (24V models)/80VDC (48V models), and maximum 500VDC

Bidirectional energy storage design.

6.3KW Version

PV Input

Max PV Input Power - 7000W

MPPT Tracking Voltage Range: 80VDC-450VDC

Rated Voltage - 360VDC

Max PV Input Voltage VOC - (at the lowest temperature): 500VDC

Max PV Input Current - 22A

MPPT Tracking Channels (Input Routed) - 1 Routed

Battery & Charging

Battery Type - Lead-acid Battery/Lithium Battery, Custom Battery (Charging and discharging parameters of different types of batteries can be set through the operation board)

Rated Battery Voltage - 48VDC

Battery voltage Range - 42~60VDC(default)

Max PV Charging Current - 120A

Max AC Charging Current - 80A

Max Charging Current - 120A

Grid-Connected Operation(Grid-Connected Output AC))

Rated Output Power - 6300W

Rated Output Voltage - 220VAC/230VAC/240VAC

Grid Voltage Range - 187VAC~264VAC

Rated Output Frequency - 50Hz/60Hz

Frequency Range - 47Hz~52Hz(50Hz),57Hz~62Hz(60Hz)

Rated Output Current - 28.6A

Power Factor: ＞0.98(Rated Power)

Off-Grid Operation (AC Input)

Rated Input voltage - 220V /230V/240V

Mains input voltage range - 165VAC-280VAC/ 120VAC~280VAC(Can be set)

Rated Input Frequency - 50Hz/60Hz

Input Frequency Range - 45Hz~55Hz(50Hz)，55Hz~65Hz(60Hz)

AC Output

Rated Output Power - 6300W

Rated Output Voltage - 220V /230V/240V

Output Voltage Accuracy: ±2%

Rated Input Frequency - 50Hz/60Hz

Output Frequency Accuracy: ±1%

Output Wave - Pure Sine Wave

Hybrid Operation (Complementary Mode (AC Input))

Rated Input voltage - 220V/230V/240V

Mains input voltage range - 187VAC~264VAC

Rated Input Frequency - 50Hz/60Hz

Input Frequency Range - 47Hz~52Hz(50Hz)，57Hz-62Hz(60Hz)

AC Output

Rated Output Power - 6300W

Rated Voltage Rated - 220VAC/230VAC/240VAC

Output Current - 28.6A/27.4A

General Parameters

Maximum Conversion Efficiency (Battery Discharge) - 94%(peak value)

MPPT Tracking Efficiency: ≥99.9

Transfer Time - 10ms(Typical value)

Display - LCD+LED

Cooling Method - Cooling fan in intelligent control

Communication - RS485/Mobile APP(WIFI Monitoring or GPRS monitoring)(Optional)

Protection Degree - IP20

Installation: Wall-Mounted

Battery low voltage alarm - 44VDC(default value）

Battery low voltage protection - 42VDC（default value）

Anti-islanding protection: ≤2S

Overload power protection - Automatic Protection (battery mode), Circuit Breaker or Insurance (AC mode)

Inverter output short circuit protection - Automatic Protection (battery mode),Circuit Breaker or Insurance (AC mode)

Temperature protection: ＞90 ℃(Turn off inverter and charging)

Environment

Operating temperature: -10℃~50℃

Storage temperature: -15℃~60℃

Noise - ≤55dB

Elevation - 2000m（More than derating

Humidity - 0%~95%, No condensation

Dimension and Weight

Product Size(L*W*Hmm) - 390*320*112

N.W.(kg) - 10.5
